Description:
Basic information
Brand: HNR
Item No: H9803 Werewolf
Scale:1/10

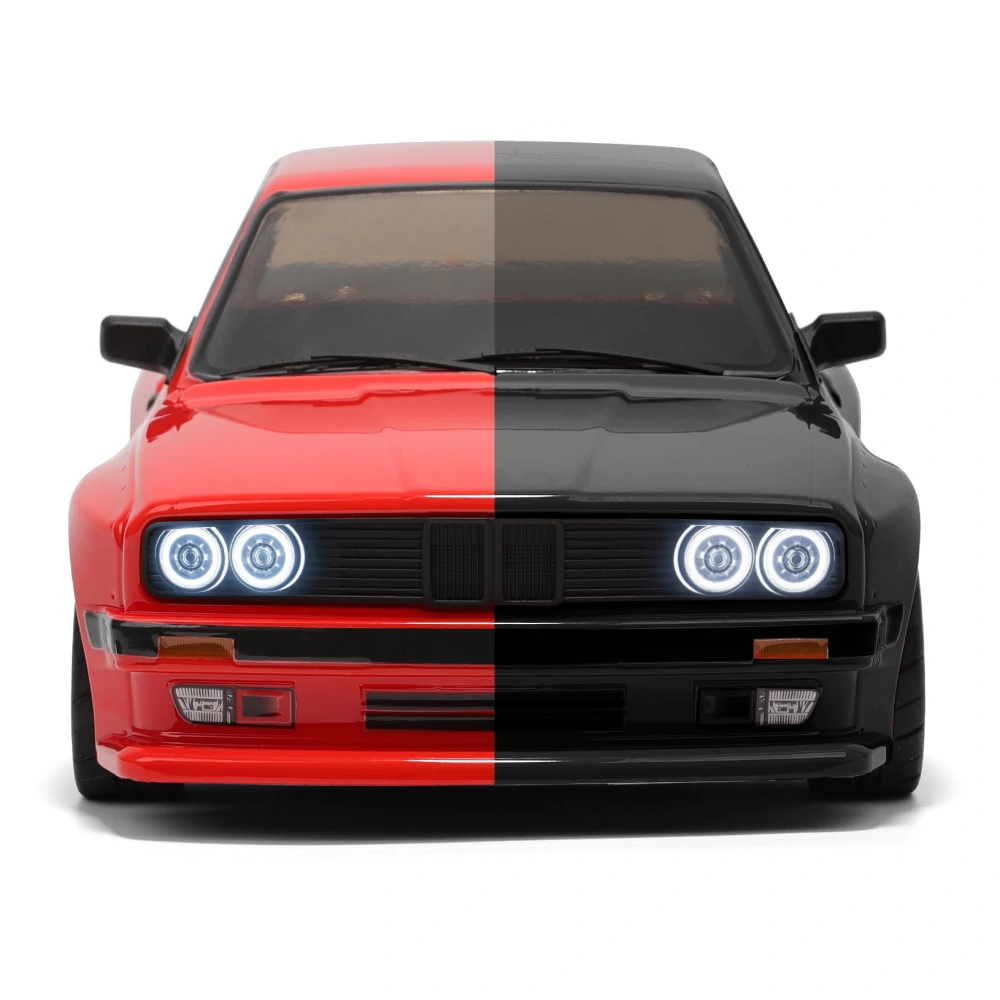

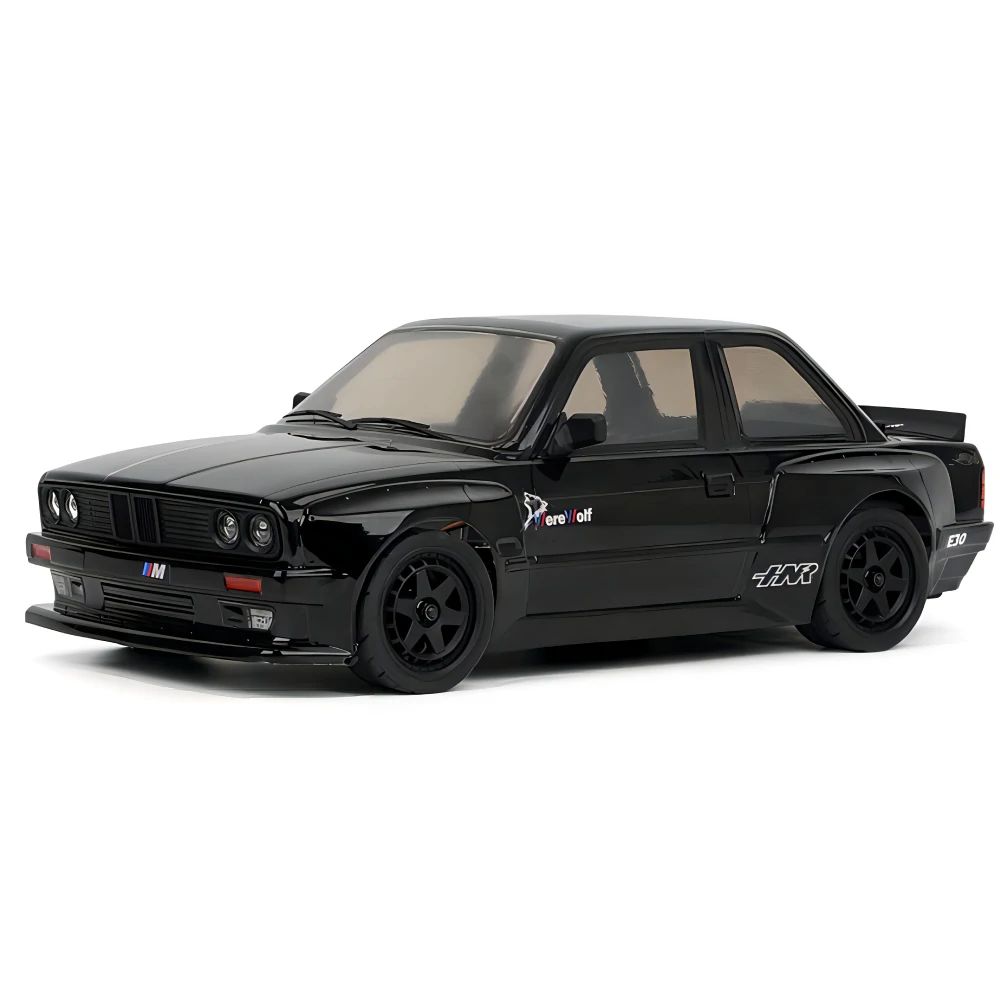

Color: Red and black
Design Speed:3s 85km/h,2s 75km/h
Power System
ESC: 60A WP-10BL60-RTR brushless ESC
Motor: 3652 3300kv brushless motor
Servo:15kg digital metal gear steering servo
Transmitter
Frequency:2.4G
Channel:4CH
Remote Distance:150m+
Required Battery:4X 1.5V AA battery(not included)
Battery: Not Included
Recommended Battery:2-3s Lipo battery(not included),such as 7.4v 3500mAh Lipo
Other
Material: Plastic, hardware, and rubber
Car Weight: About 1740g(without battery)
Gear Ratio:5.5:1
Number of Differentials: "Steel"2P
Body Shell Type:1.2mm（thickness）PC soft
Dimension
Car Size:440*200*150mm
Wheelbase:260mm
Ground Clearance:10-20mm
Wheel:65*25mm(F)/65*30mm(R)
Battery Tray Size:<145*50*25mm(L*W*H)
Box Size:595*260*175mm

Features:

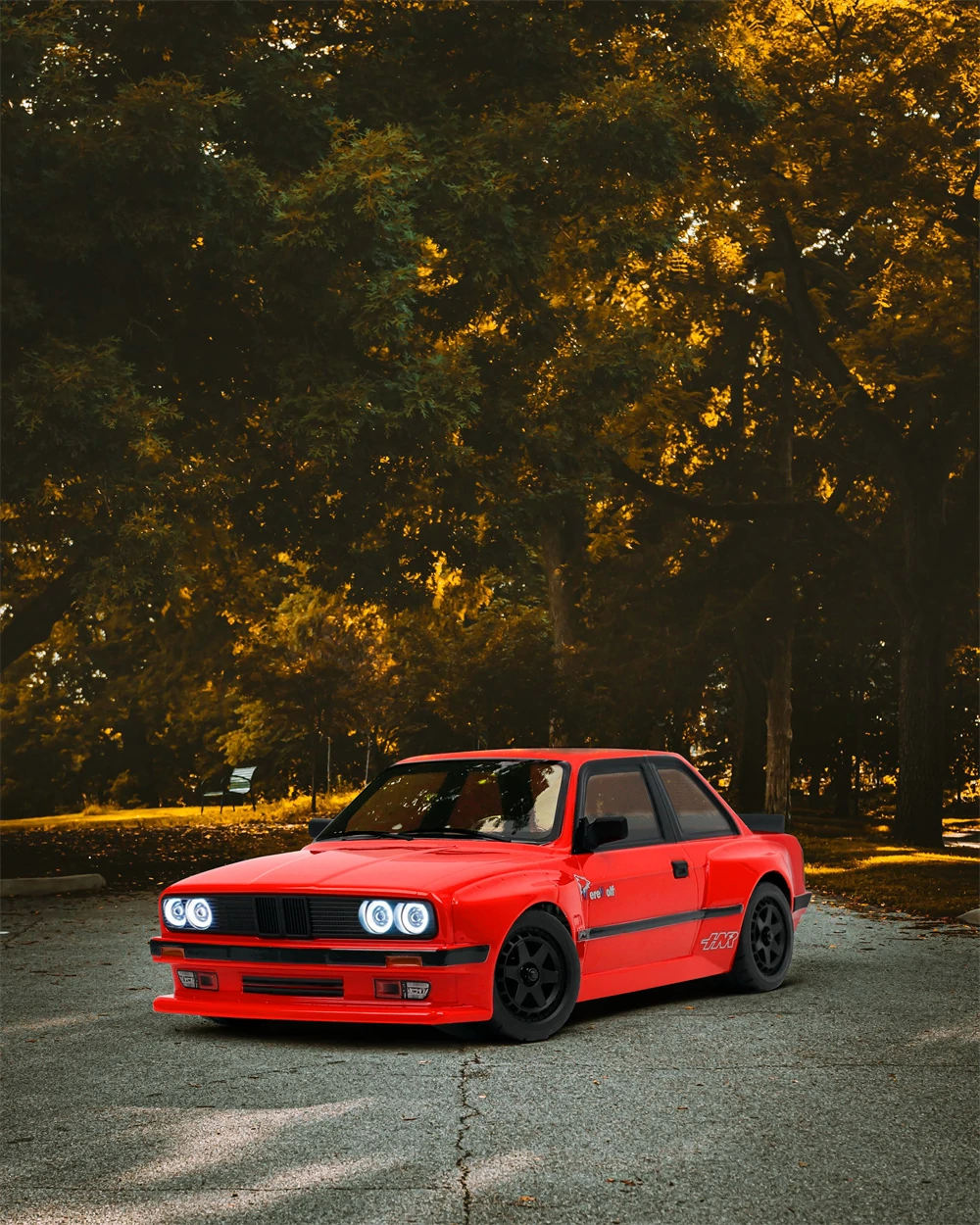

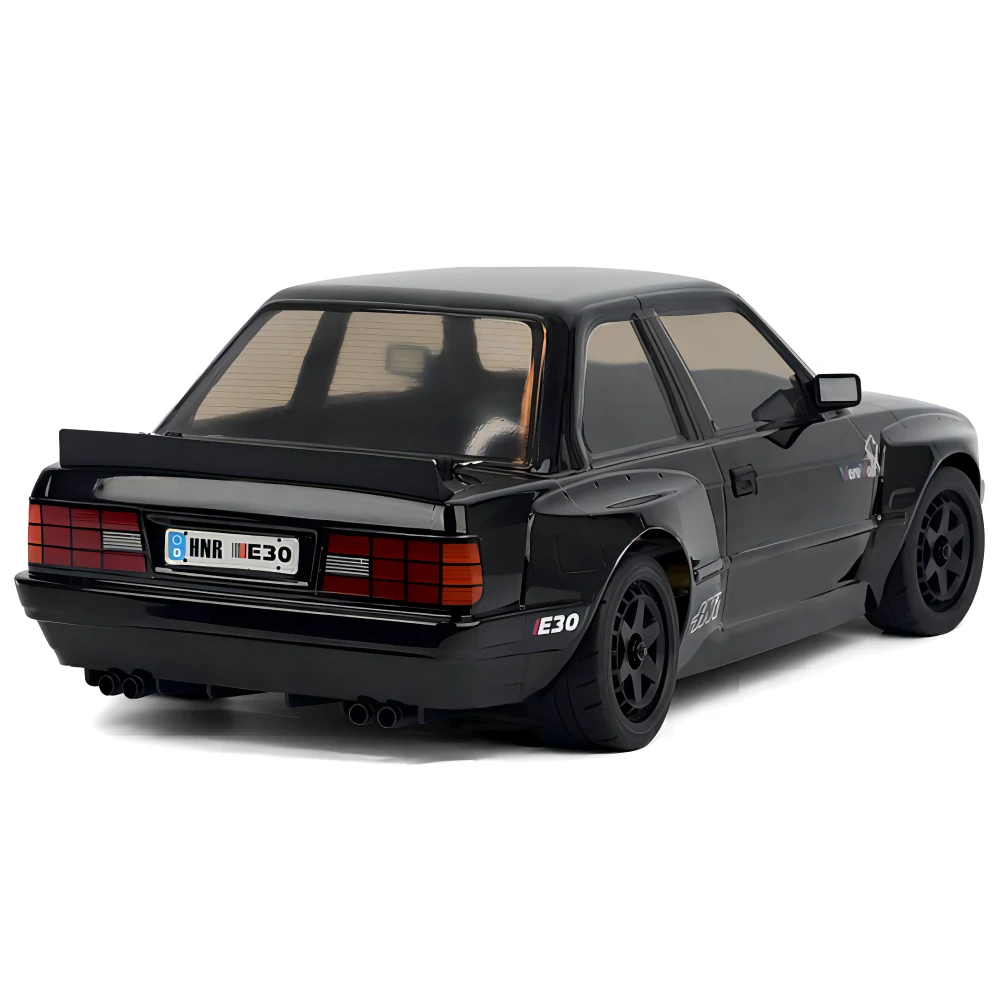

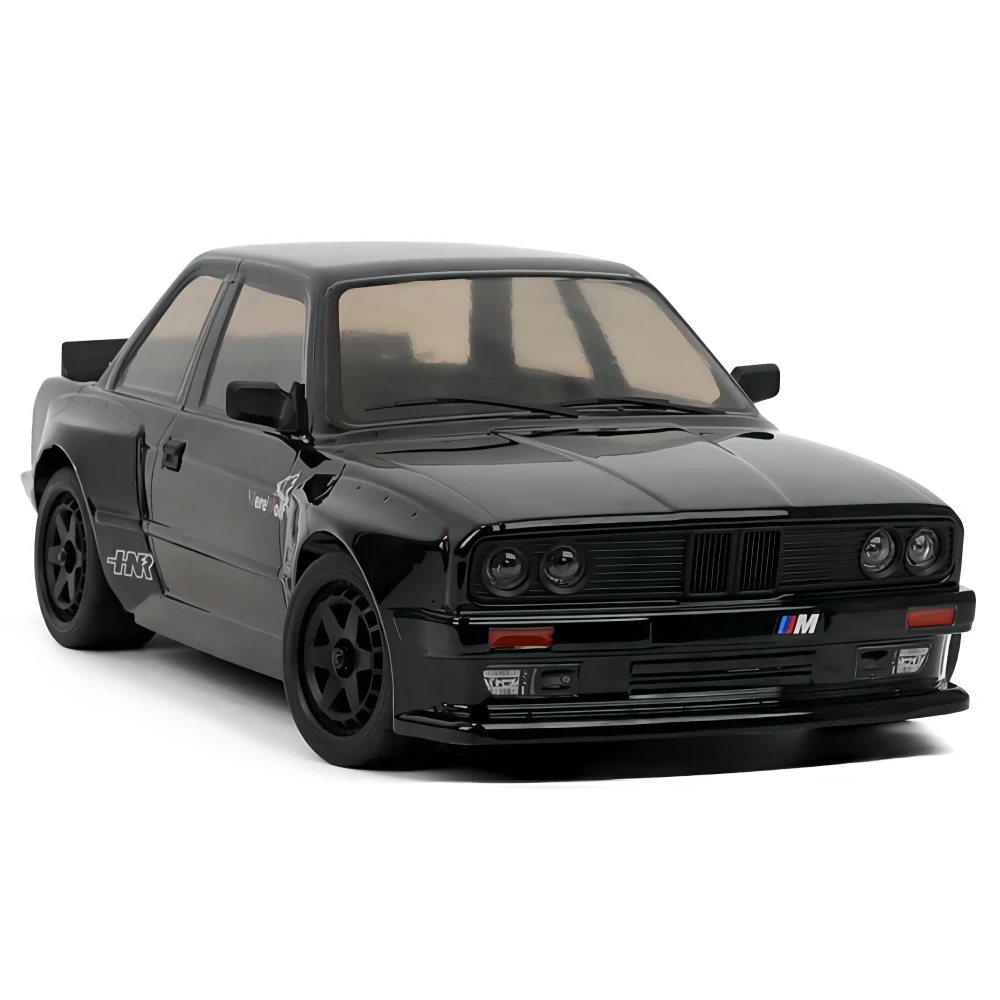

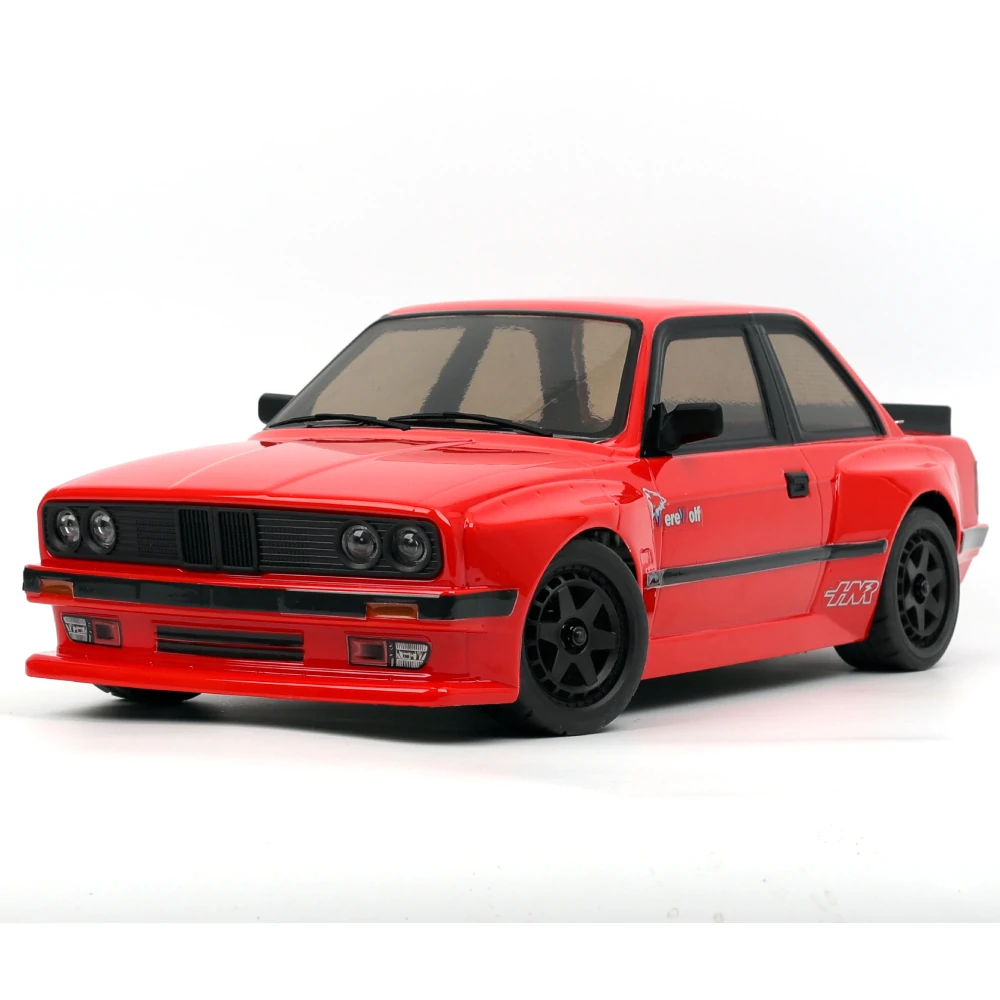

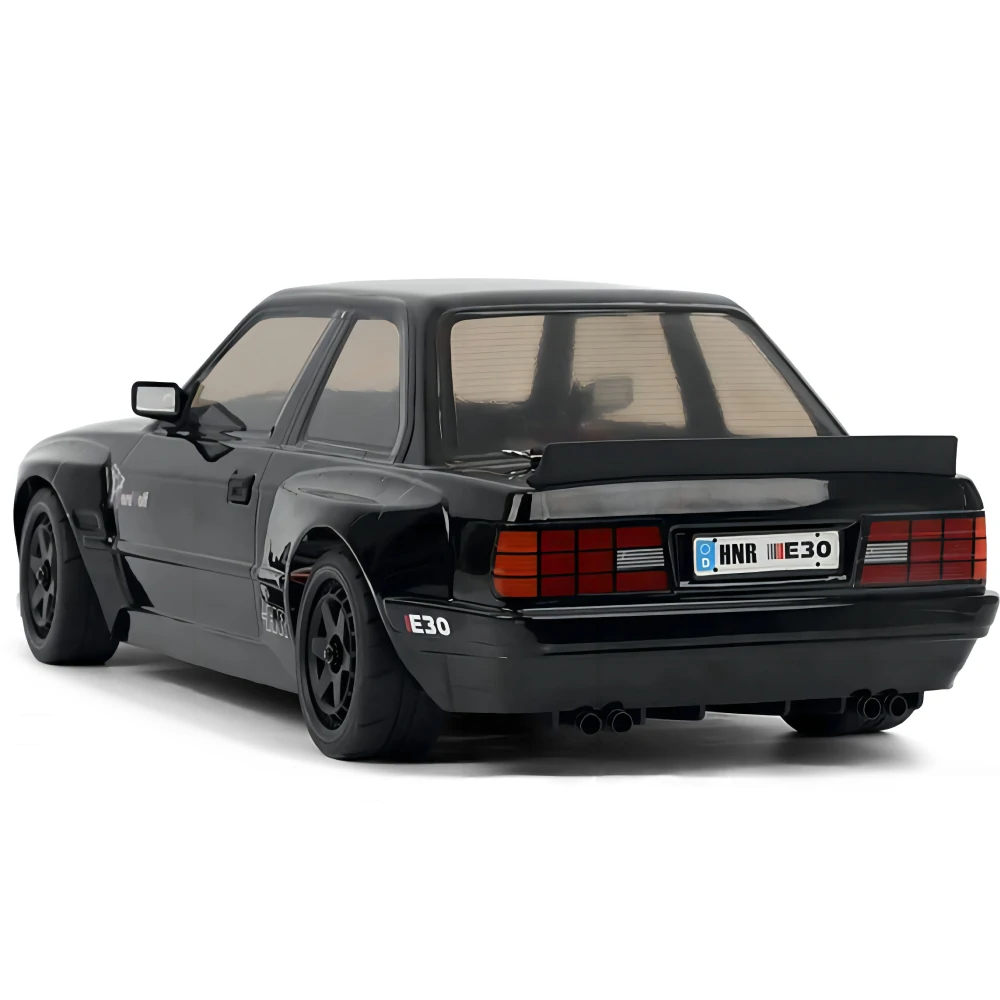

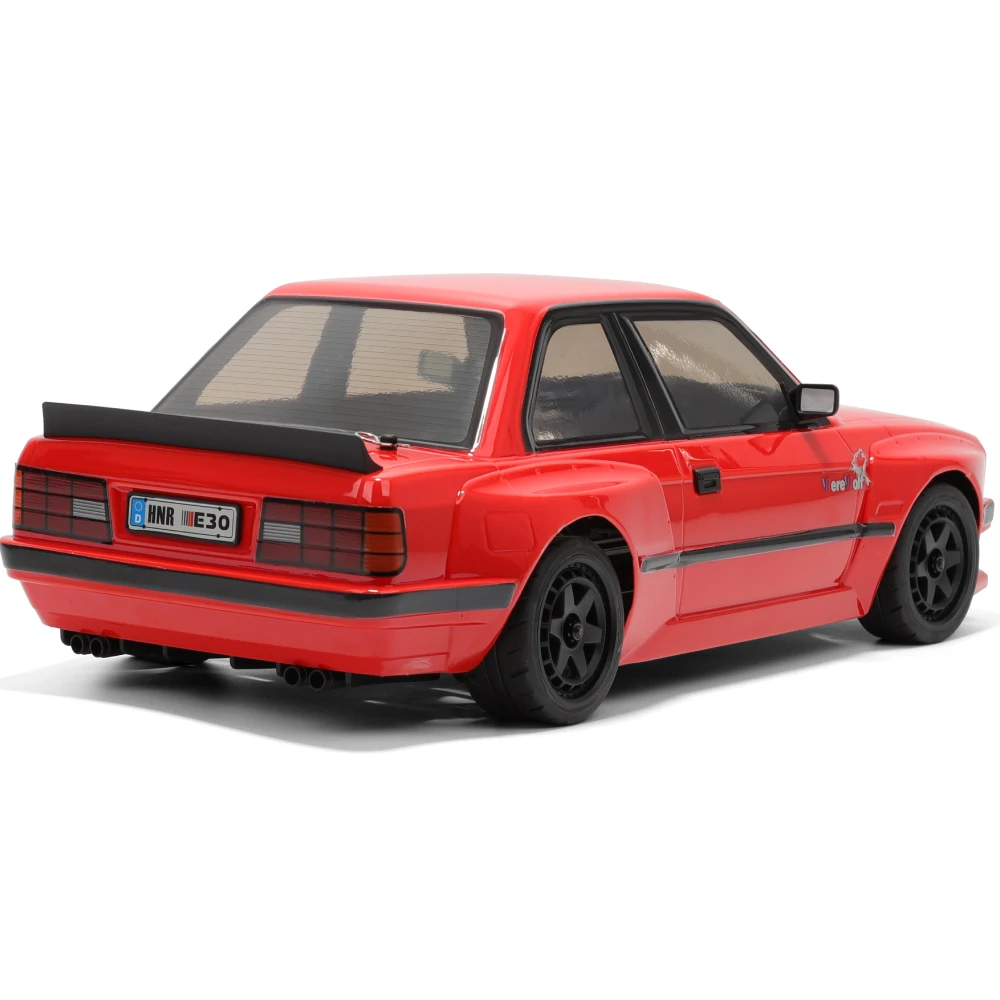

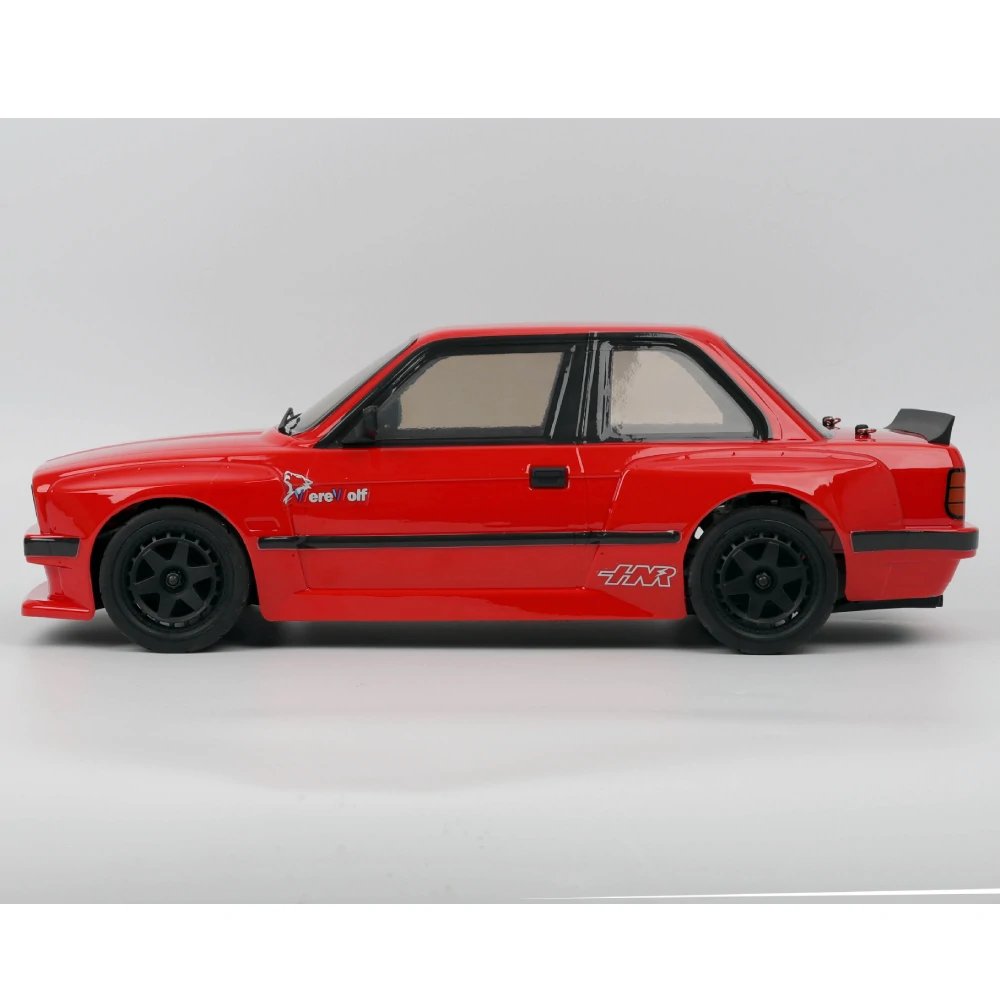

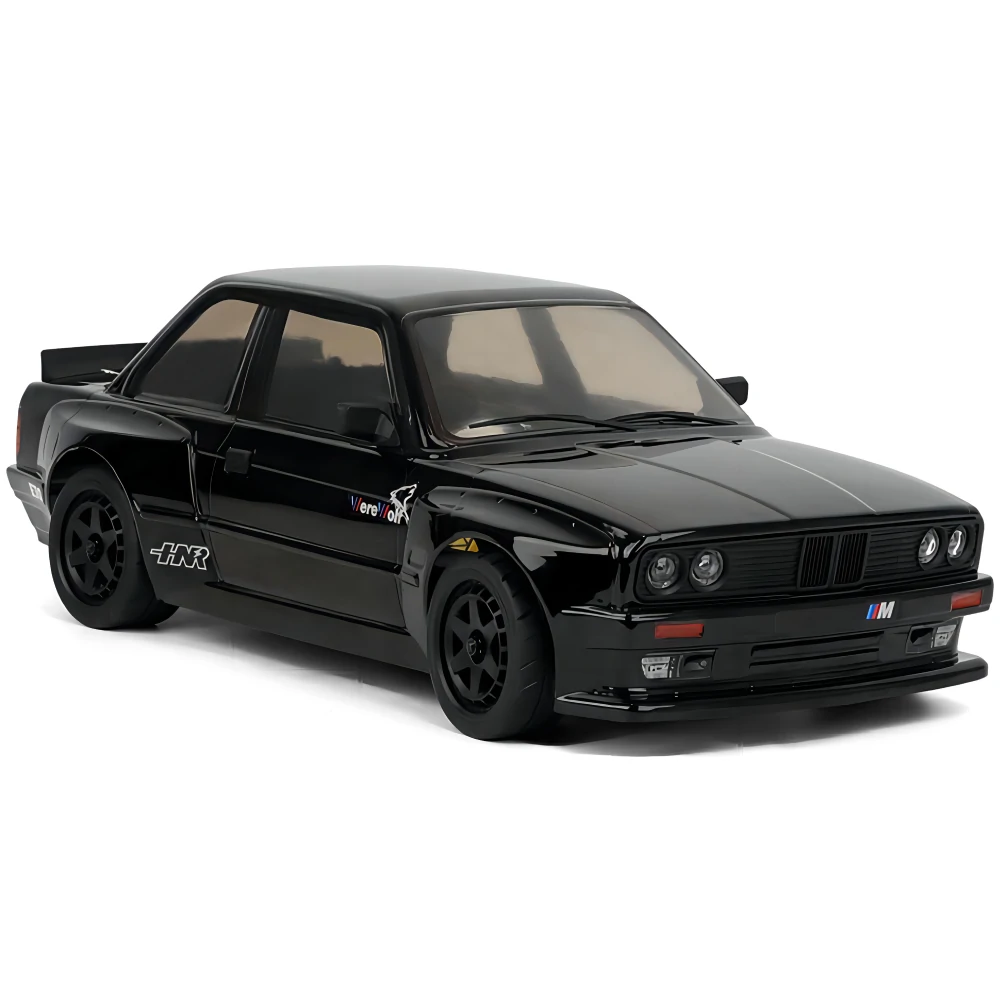

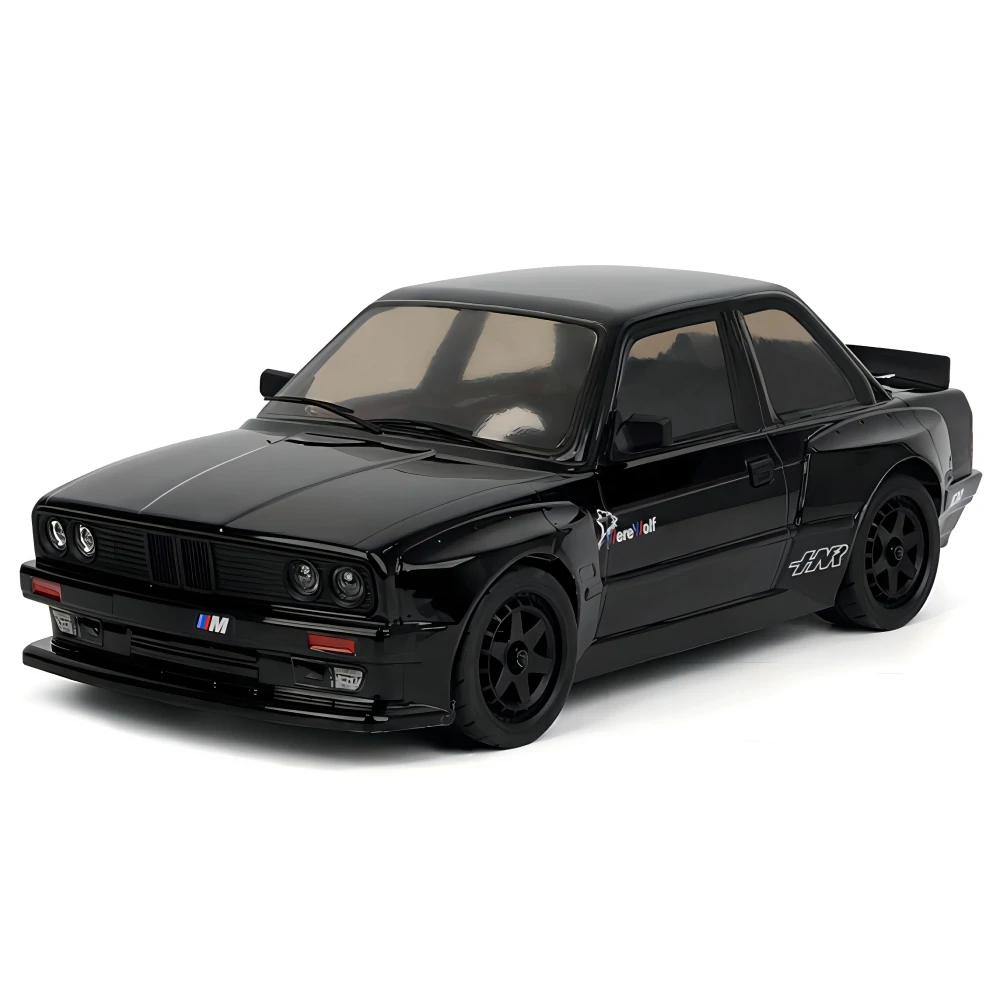

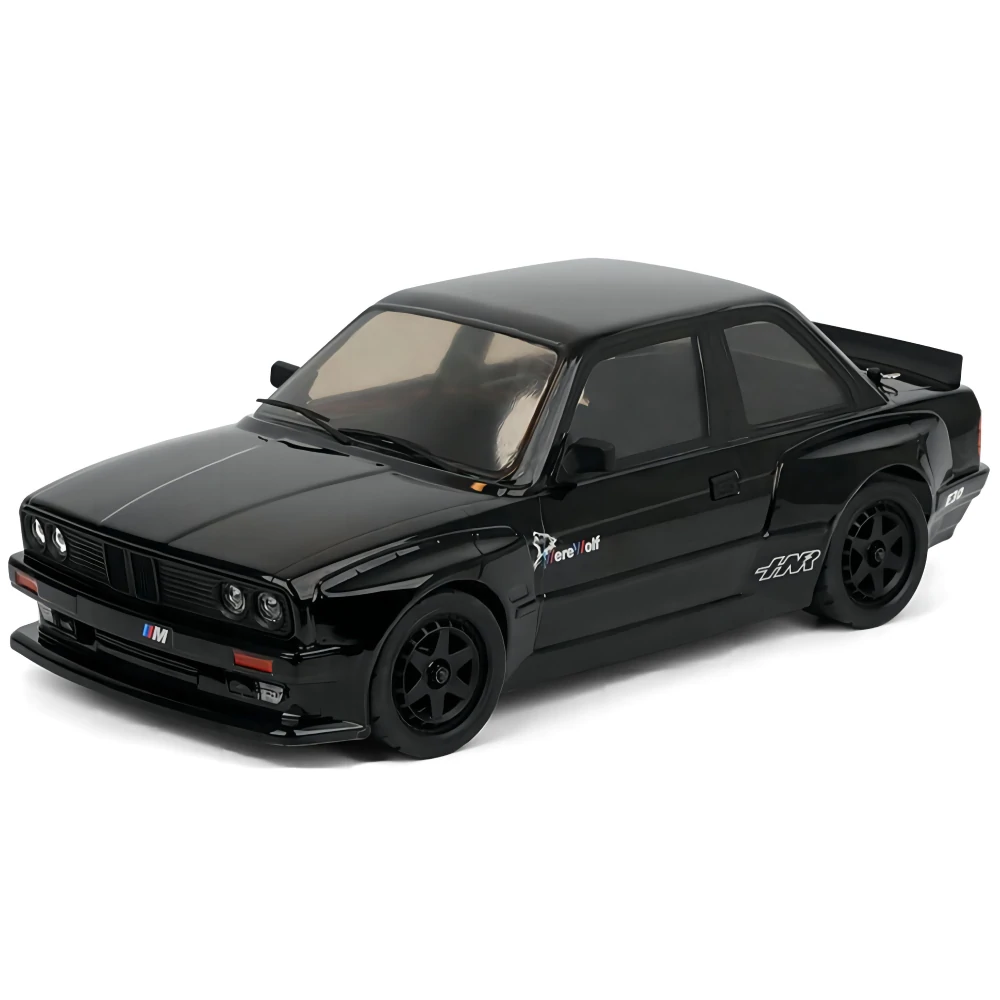

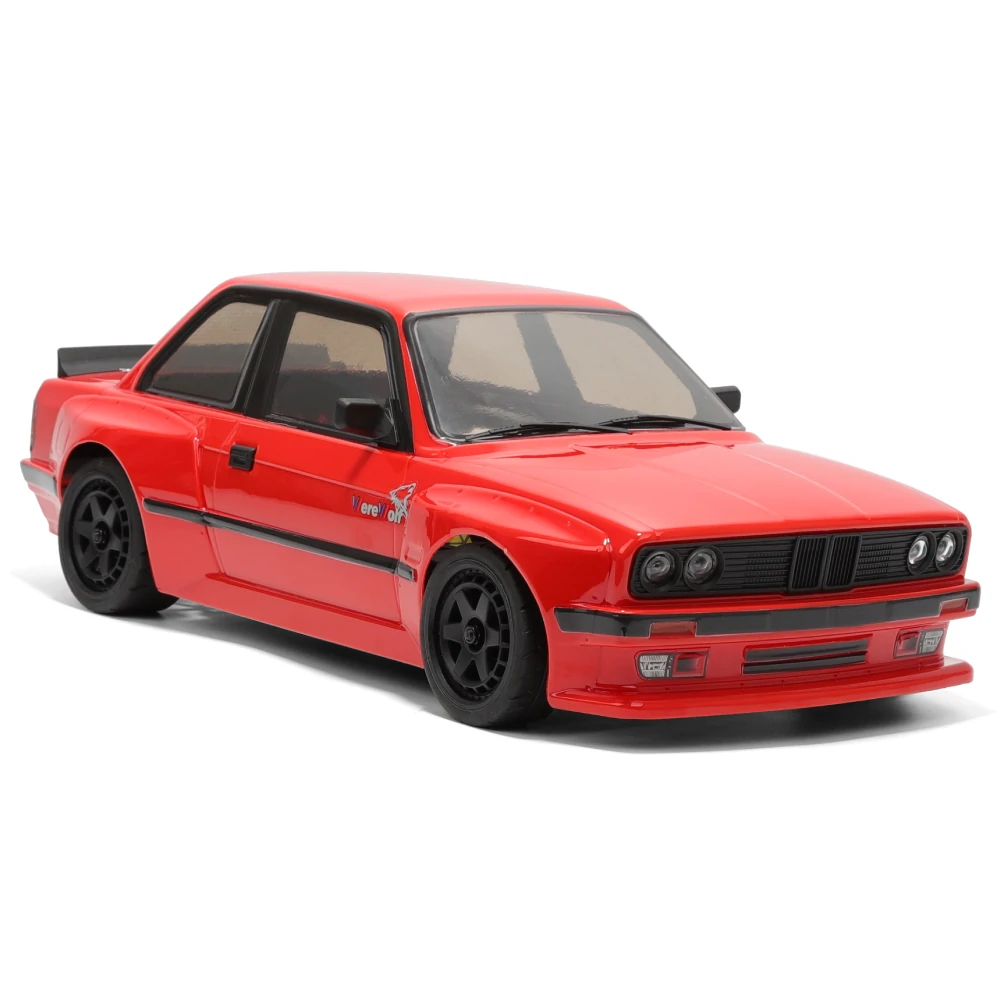

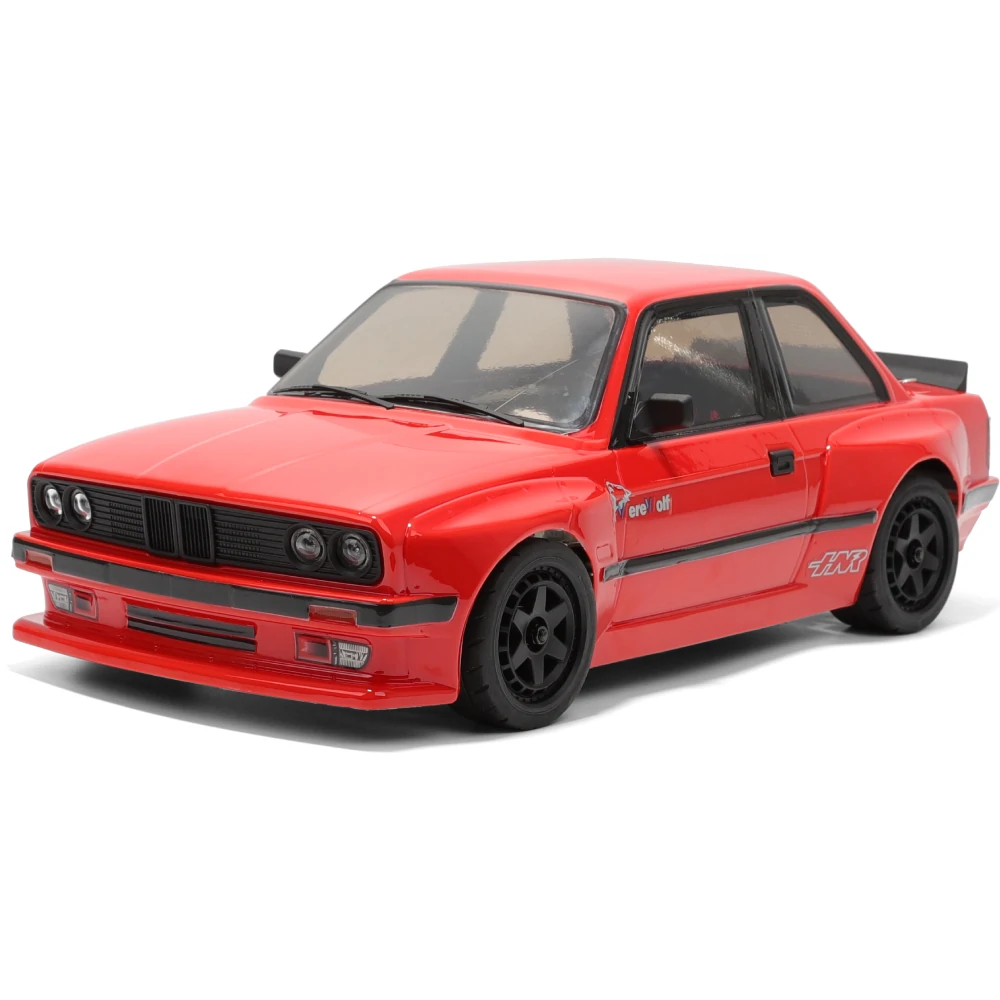

"WEREWOLF", HNR new 4WD 1/10 scale brushless racing car. In terms of appearance, Werewolf uses a simulated bodyshell with intake grill, and has multi-functional LED light group. Equipped with high grip racing tyres in factory, there also includes another drifting tyres to enjoy the speed and drifting. In terms of power setting, it adopts 60A brushless ESC + 3652 3300KV brushless motor, which can use 2S~3S Li-po battery, and equipped with DVC (gyroscope) light control receiver and 5-CH 2.4G remote control. With DVC function, it could enchance the operation control during high speed. This model has a retro styling and sporty wide bodyshell surrounded, which is a valued product for RC players to play. Item No. H9803, 99% RTR version in factory (exclude battery and charger).

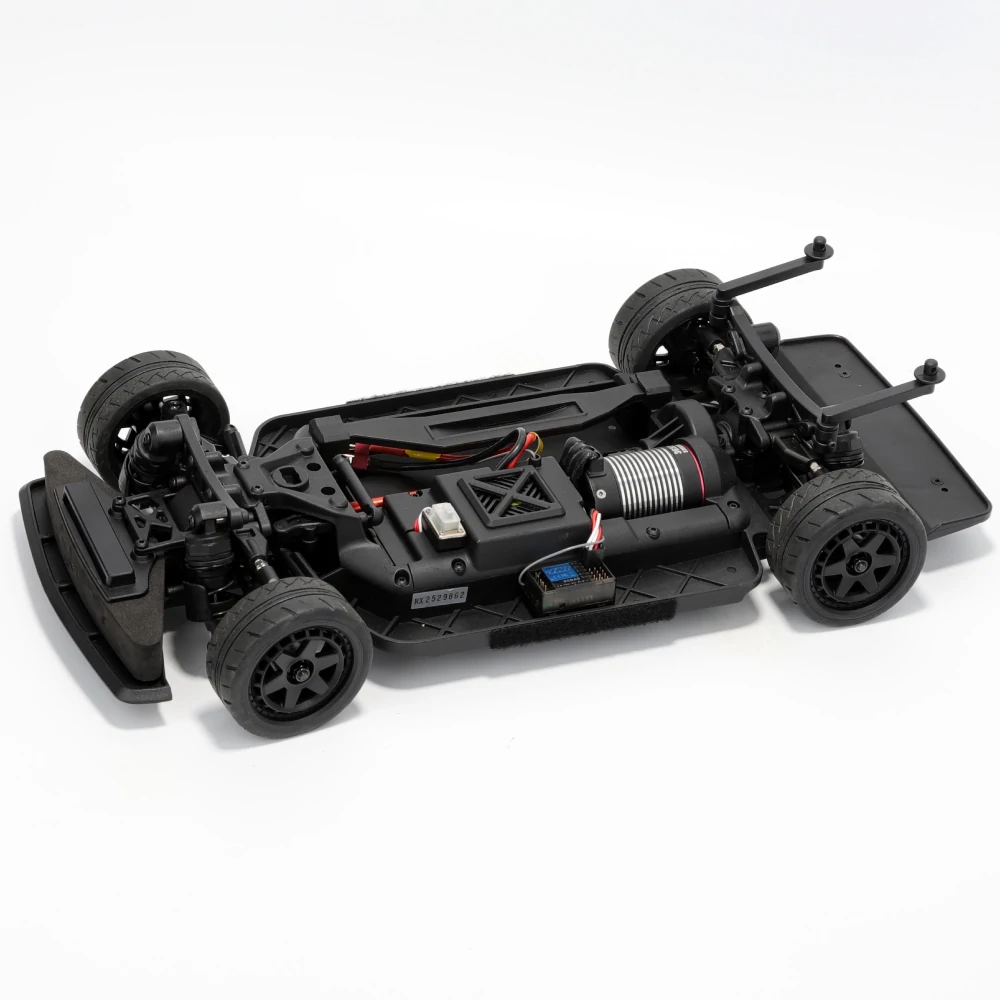

Gear Transmission System

All bearing, front and rear Diff cases use metal gear and leakproof seal design
5.8mm alloy central metal drive shaft, front and rear drive shaft are made of #1144 high-carbon, and the front drive shaft uses CVD structure.

Suspension System
Adjustable oil shock absorber supsension
Equipped with drop-proof spring, Fender and pivot ball protective cover
3.0MM hardened axis with high-density shock absorber oil;

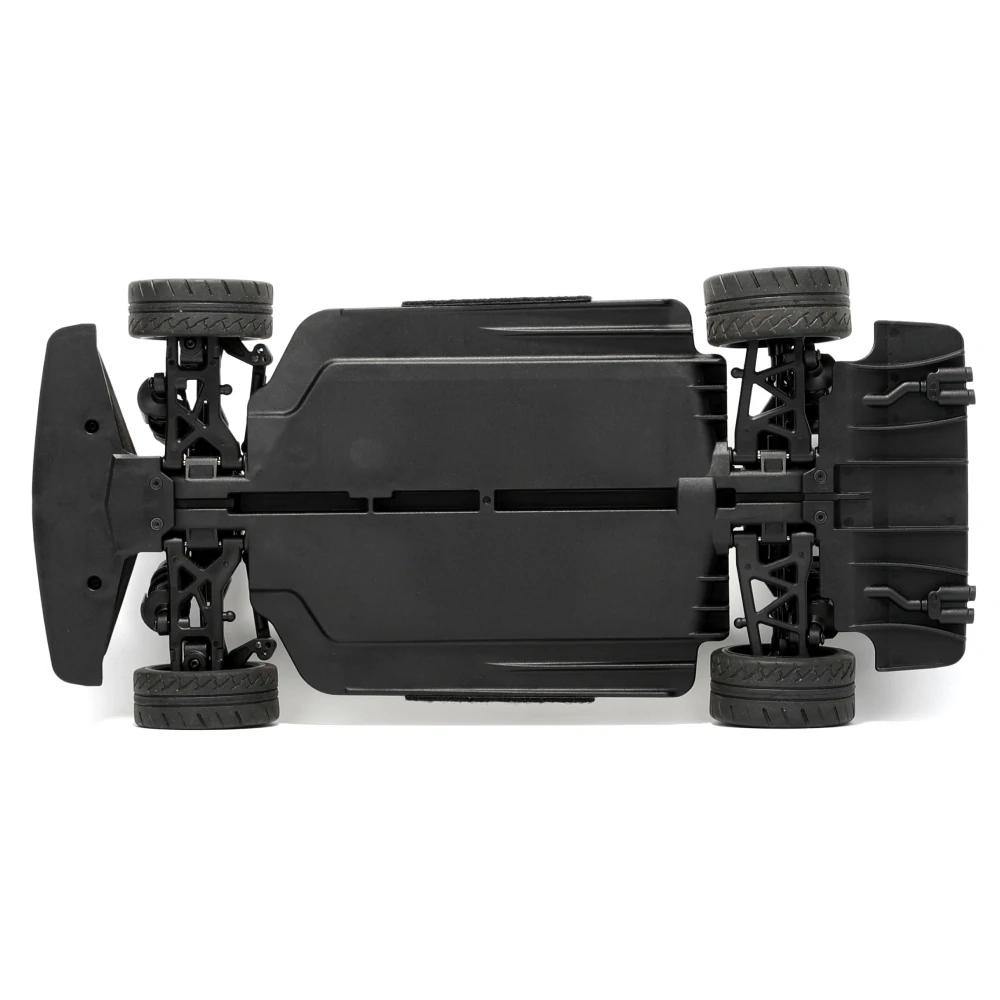

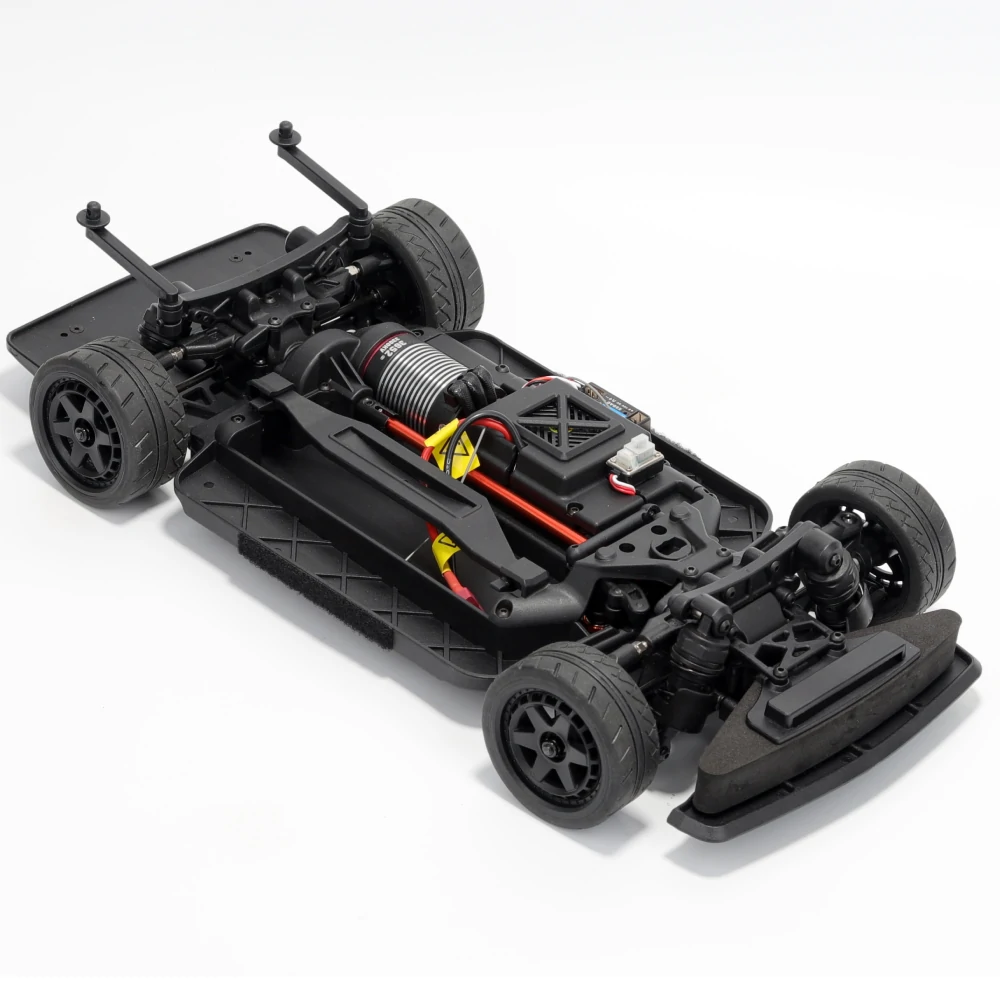

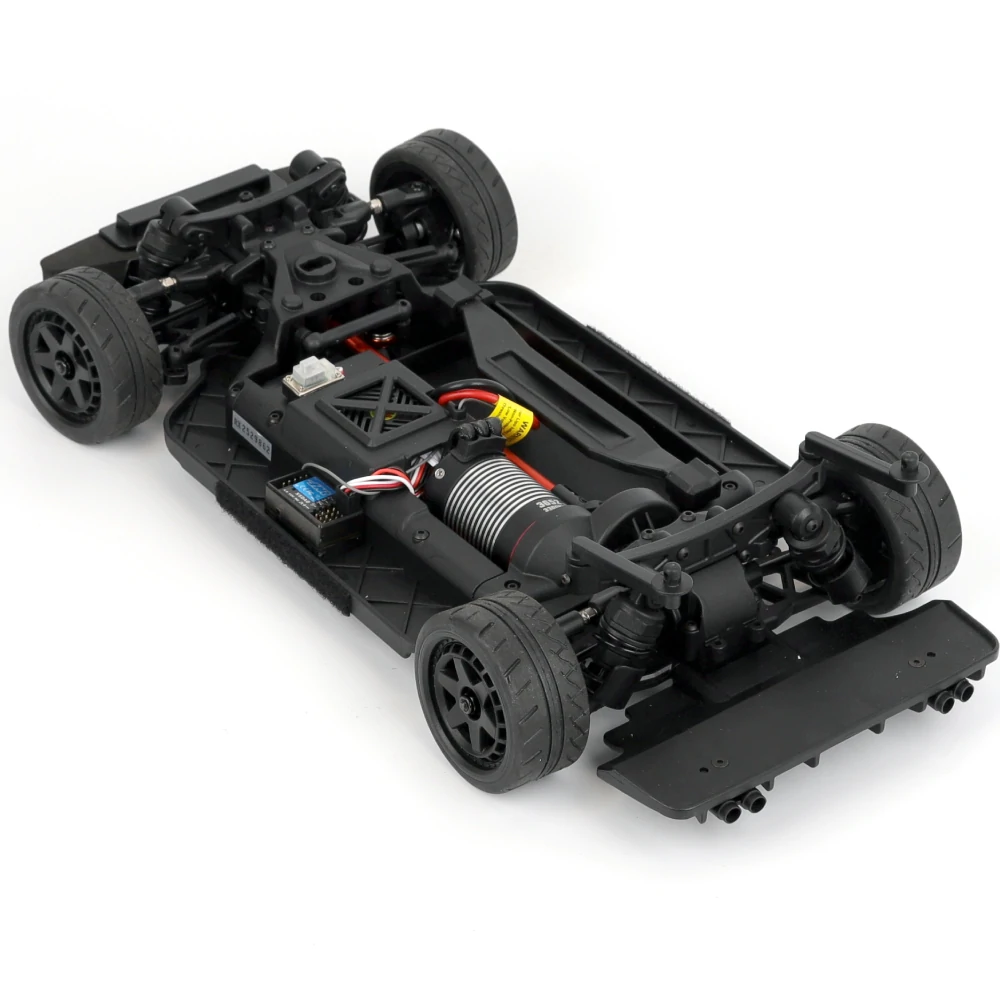

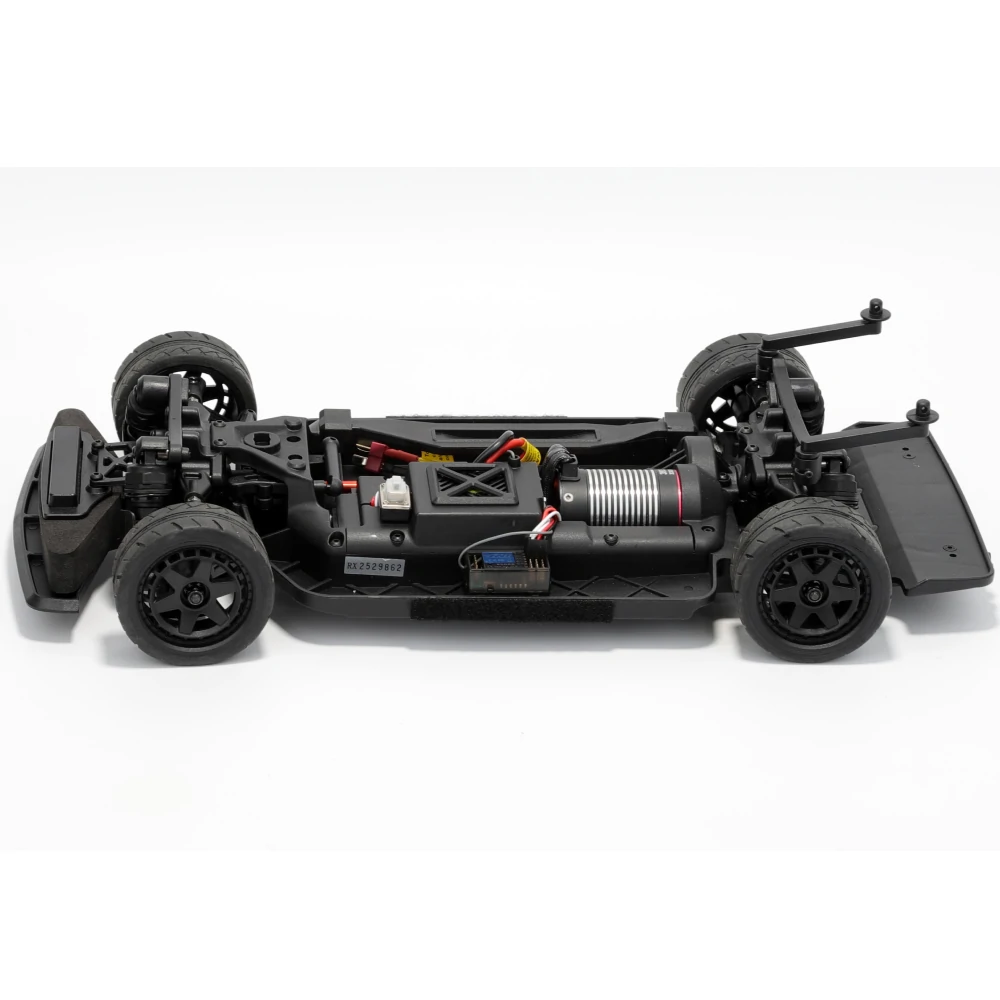

Widened and screwless chassis looks simple and beautiful, and has better anti-dust effect and stability.

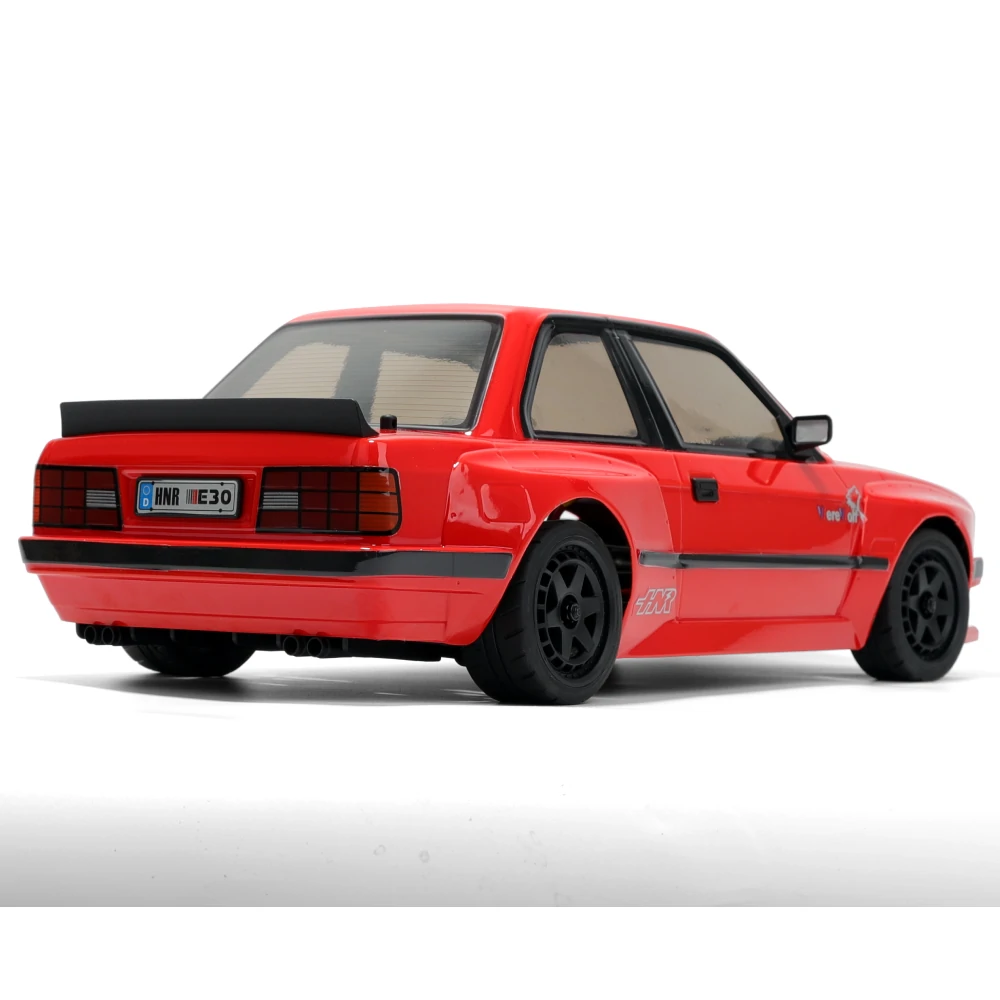

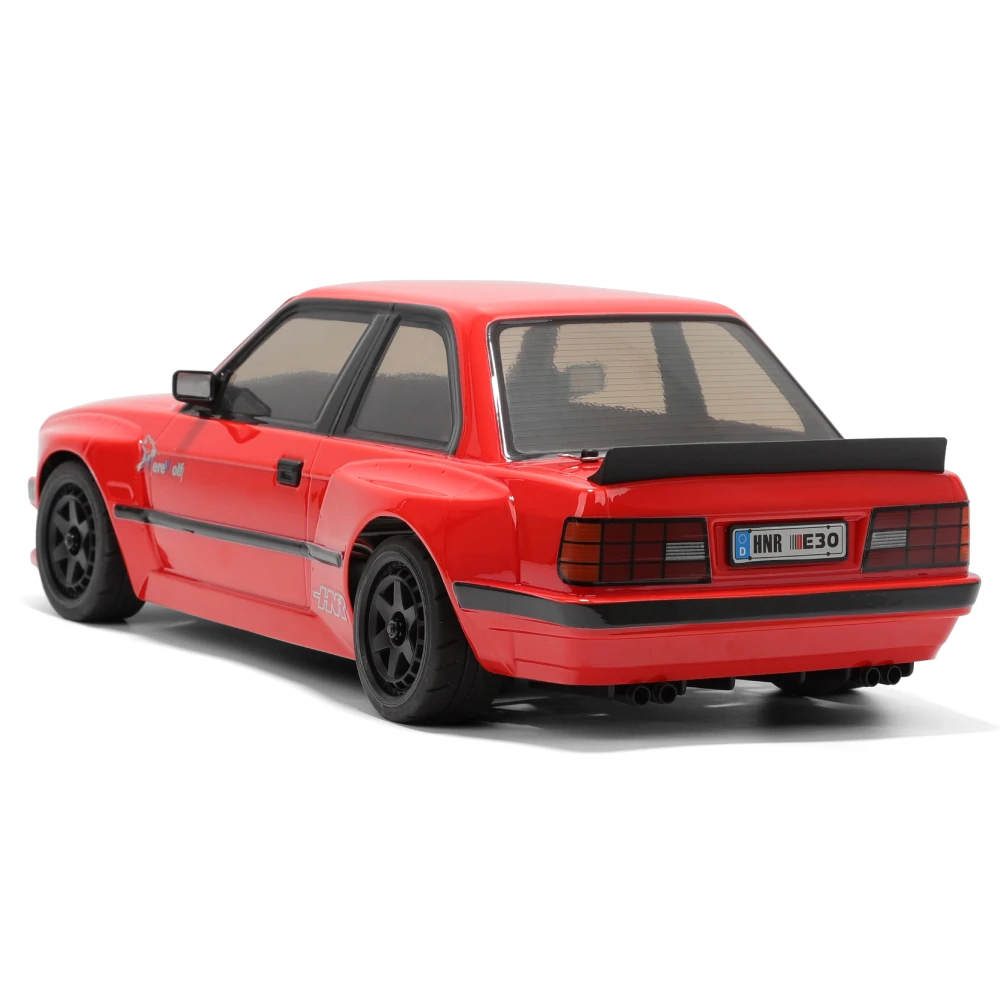

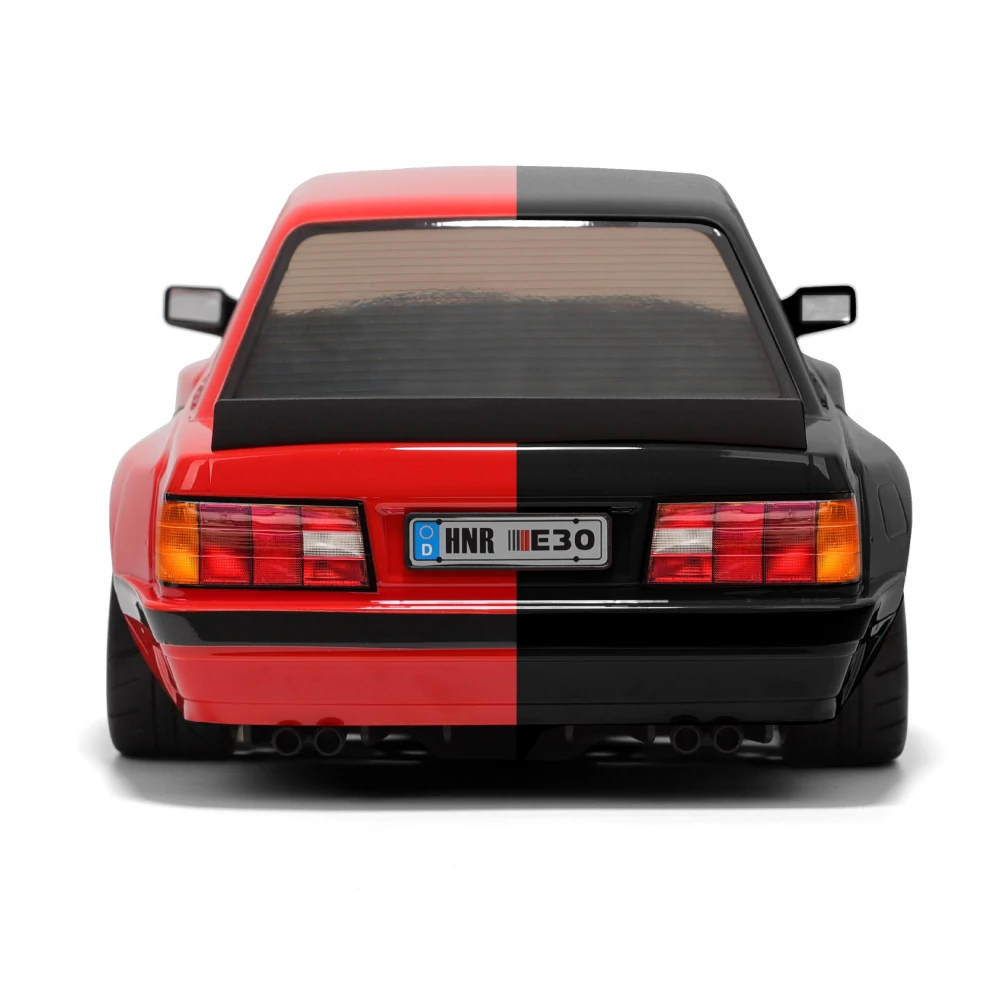

The rear bumper is in deflector shape, increasing the dynamic appearance,also effectively reducing the air resistance generated by the racing car at high speed, making the racing car more close to the road and improving the driving performance;

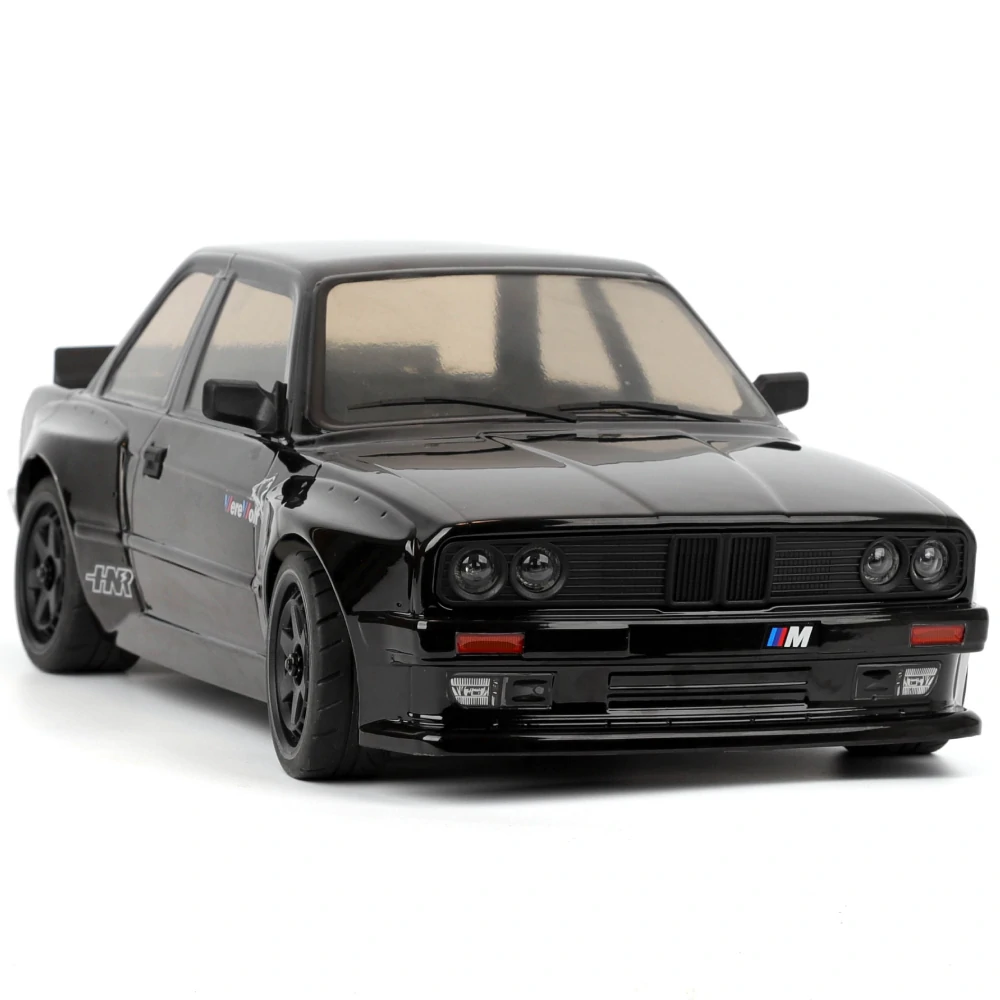

The front of bodyshell adopts the invisible reverse buckle fixing way, showing beautiful and realistic.

Front and rear wheels in different width;
The front narrow wheels help the car to turn sensitively, while the rear wide wheels help the car running smoothly during high-speed driving;
High-density rubber tire with EVA foam, pattern has anti-skid and drainage function.
Drift Wheels assembled in factory, easily switch between racing or drifting modes。

The upper swing bar adjusted steel link;
Front and Rear have the anti-roll desgin（packed in giftbox, please assemble when needed）

Right battery layout, with larger measurment;
Quick-detachable mechanical priciple battery holder。
Battery exclude in factory, the specification is 2S-3S, the maximum measurement is 145x50x25mm (LxWxH).

"WP-10BL60-RTR"Electronic Speed Control
Compatible with sensorless brushless motors and sensored brushless motors.
Fully waterproof design for all weather conditions with independent fan.
Super internal switch-mode BEC with switchable voltage of 6V/7.4V for easily driving big torque servos and high voltage servos.
The instantaneous current can reach 15A；
Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe.

3652/3300KV Brushless Motor
Better motor linearity and stable rotor magnetism;
6061 alloy shell and the shell temperature can reach 100°C (212 F);
Motor mount equipped with heat sink, supporting 23T-29T motor pinion

1.2MM thick PC injection simulation bodyshell;

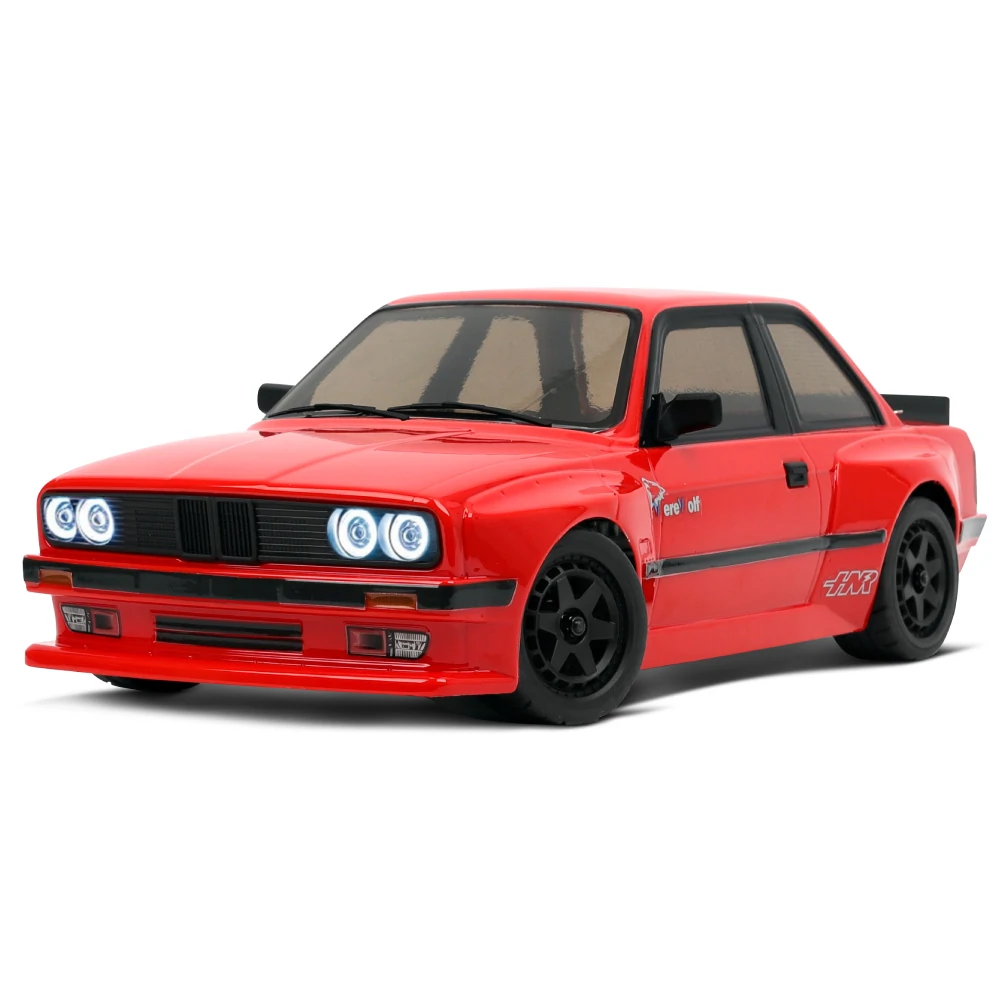

Front and rear have multifunctional entertainment light control group;
The bodyshell is equipped with plastic accessory parts, such as spoiler and rearview mirror,etc.

New 2.4G 5-CH remote control receiving system with DVC dynamic body stability control system and multifunctional light control system.
15KG all-metal gear digital steering servo，
Fully waterproof design

Package Included:
1X RC Car(do not have battery and charger)

1X Remote Controller

1X USB Charging Cable

1X Instruction Manual
