Overview:

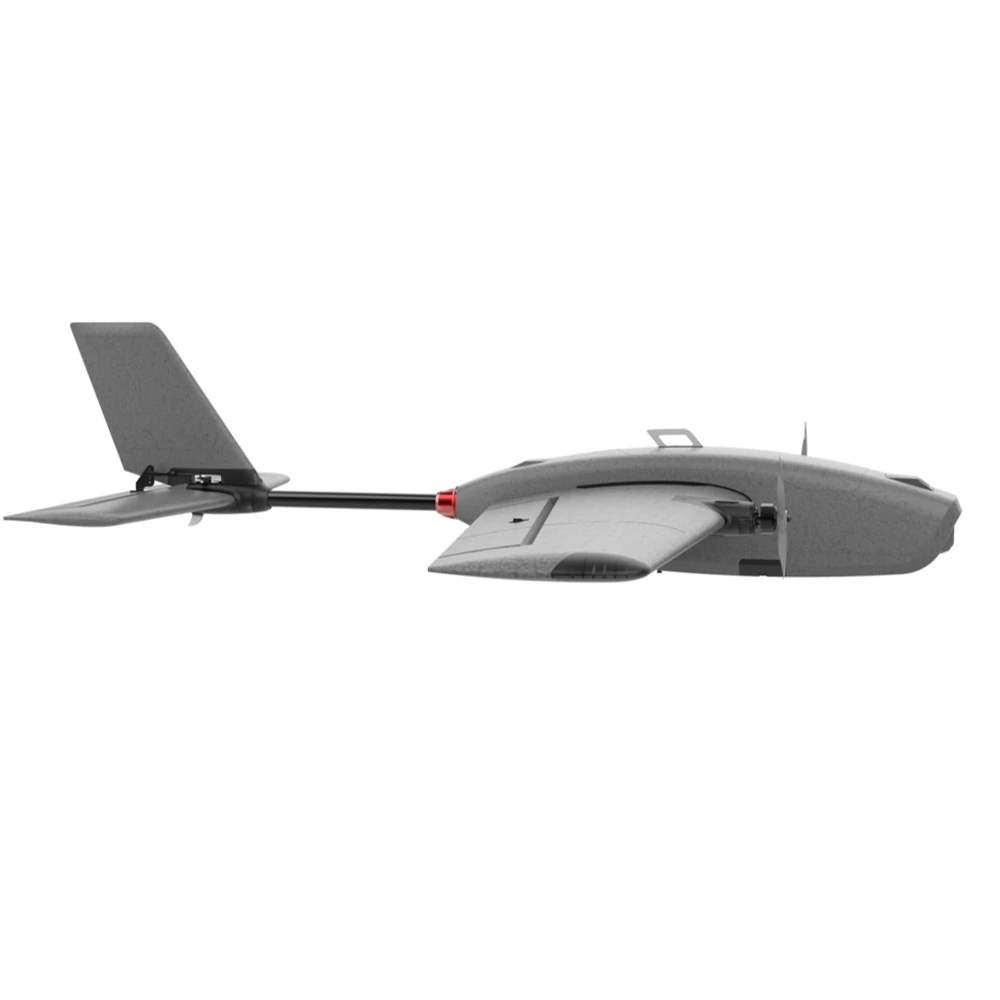

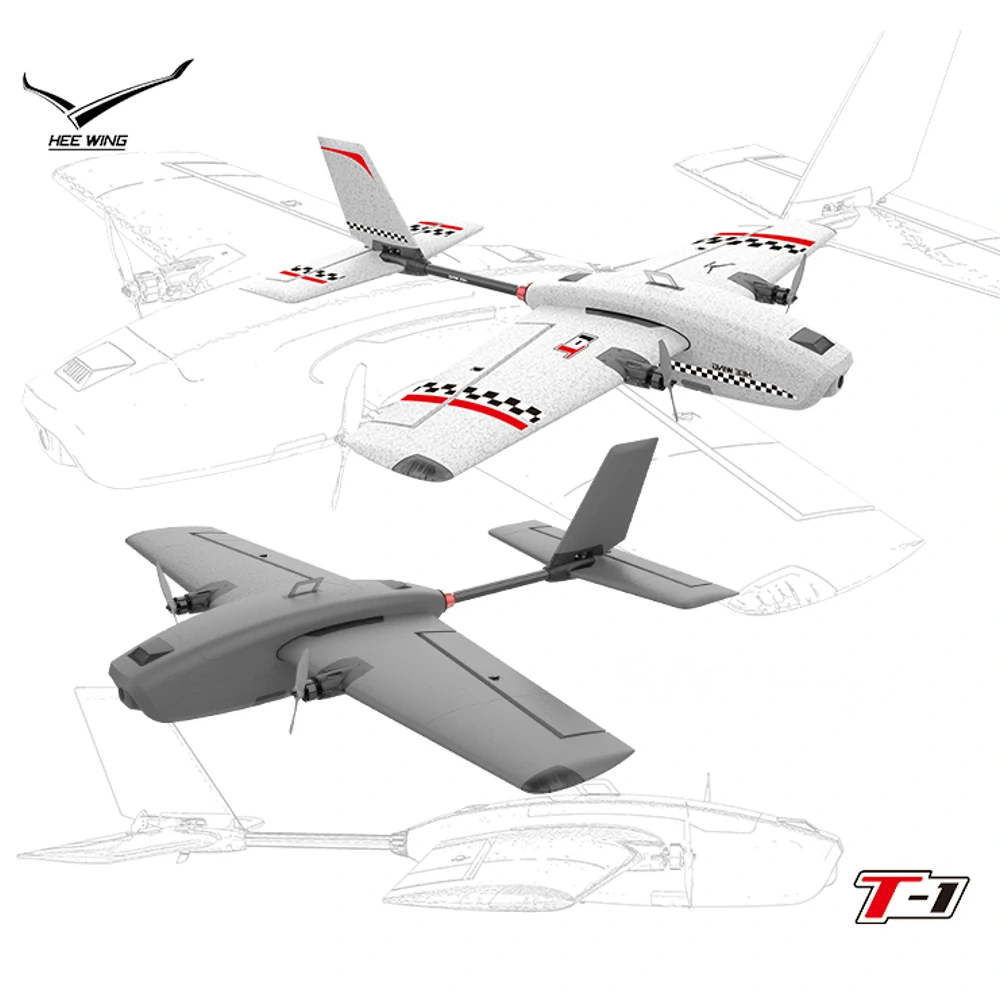

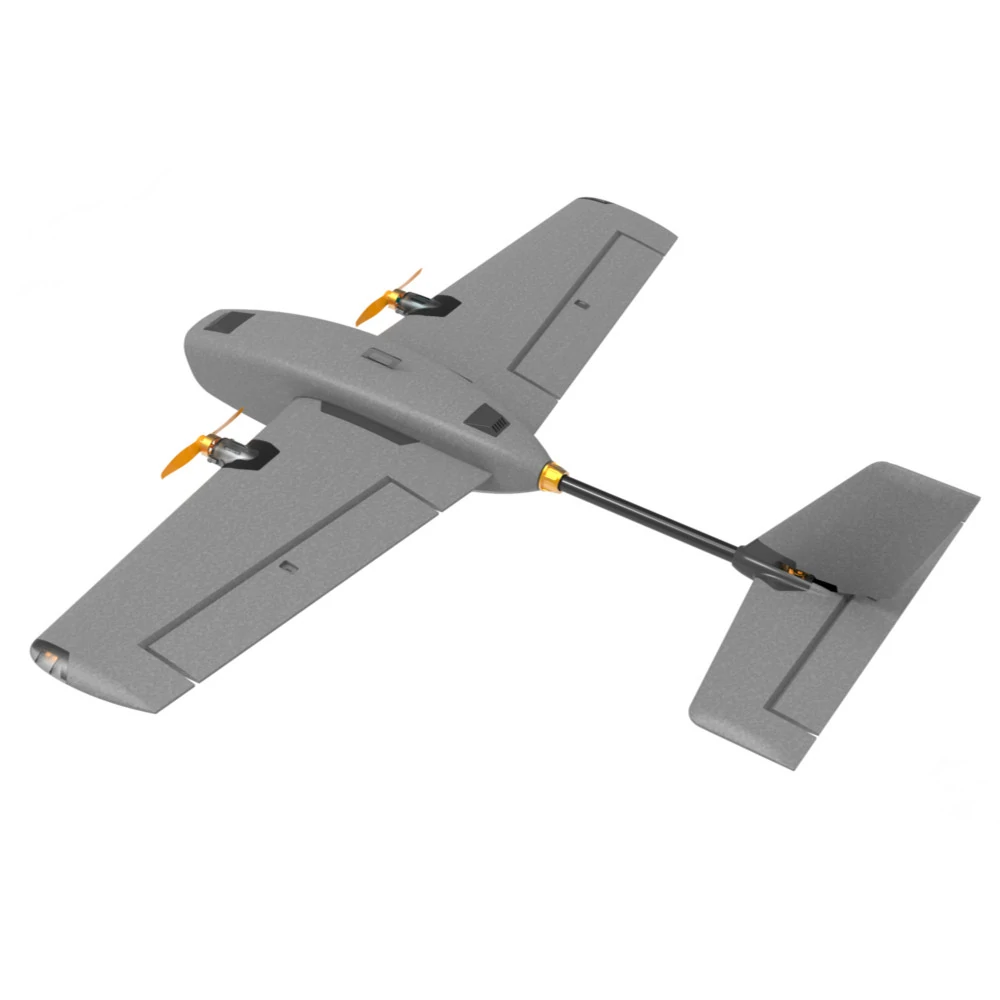

Hee Wing RC’s most popular model! It’s small, has twin motors, and is easy to disassemble for transportation.
T1 Ranger – PNP PRO comes mostly assembled with preinstalled electronics.

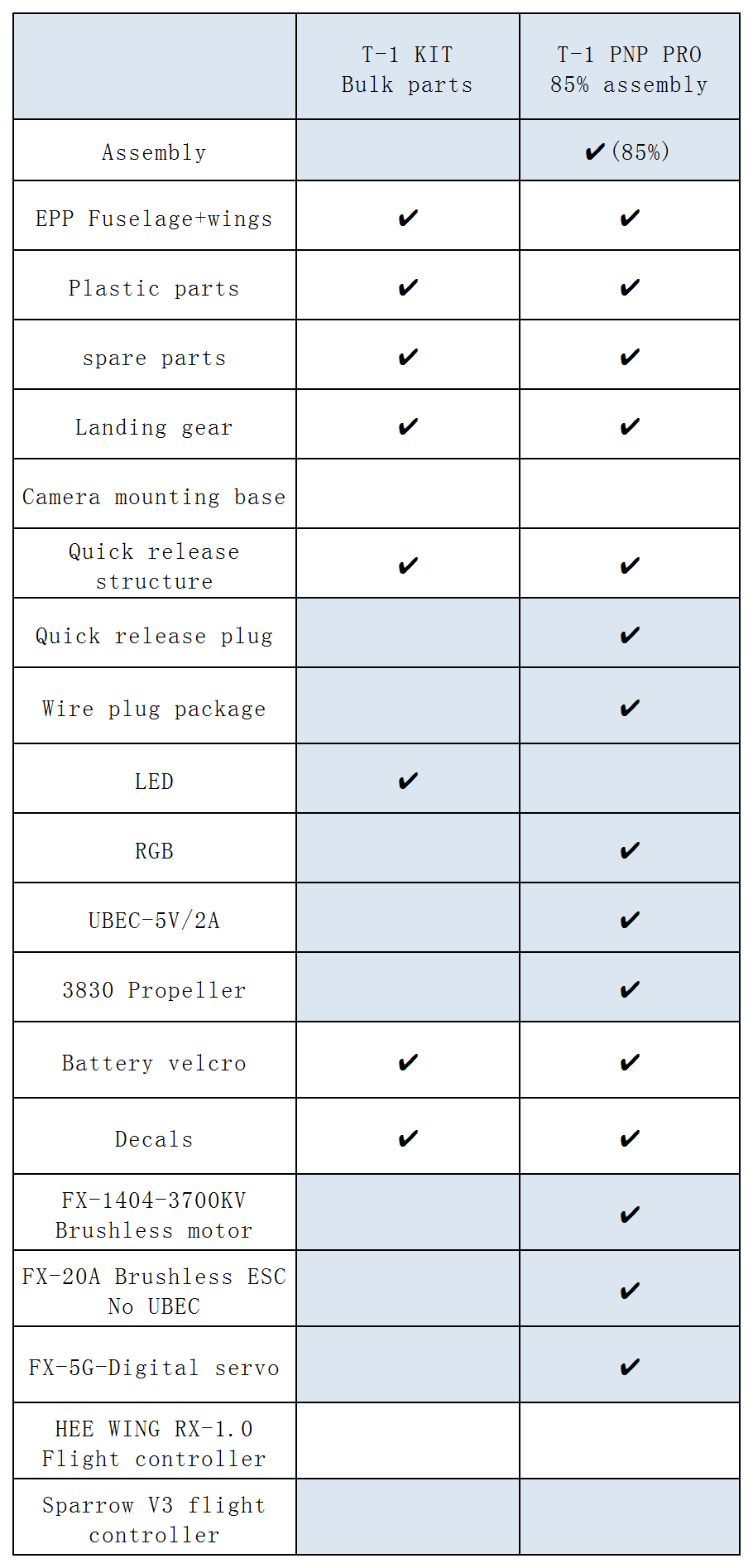

PNP vs PNP Pro
– PNP Pro comes with the newer more powerful 1406 instead of 1404 motors, 25A instead of 20A ESC, 7g Digital Metal Gear Servo instead of 5g Digital Plastic Gear Servo, RGB Navigation Lights, and Driver Board.

Specifications:
Brand Name: HEE WING
Item Name: T-1 Ranger, T-1 Ranger PRO (optional)

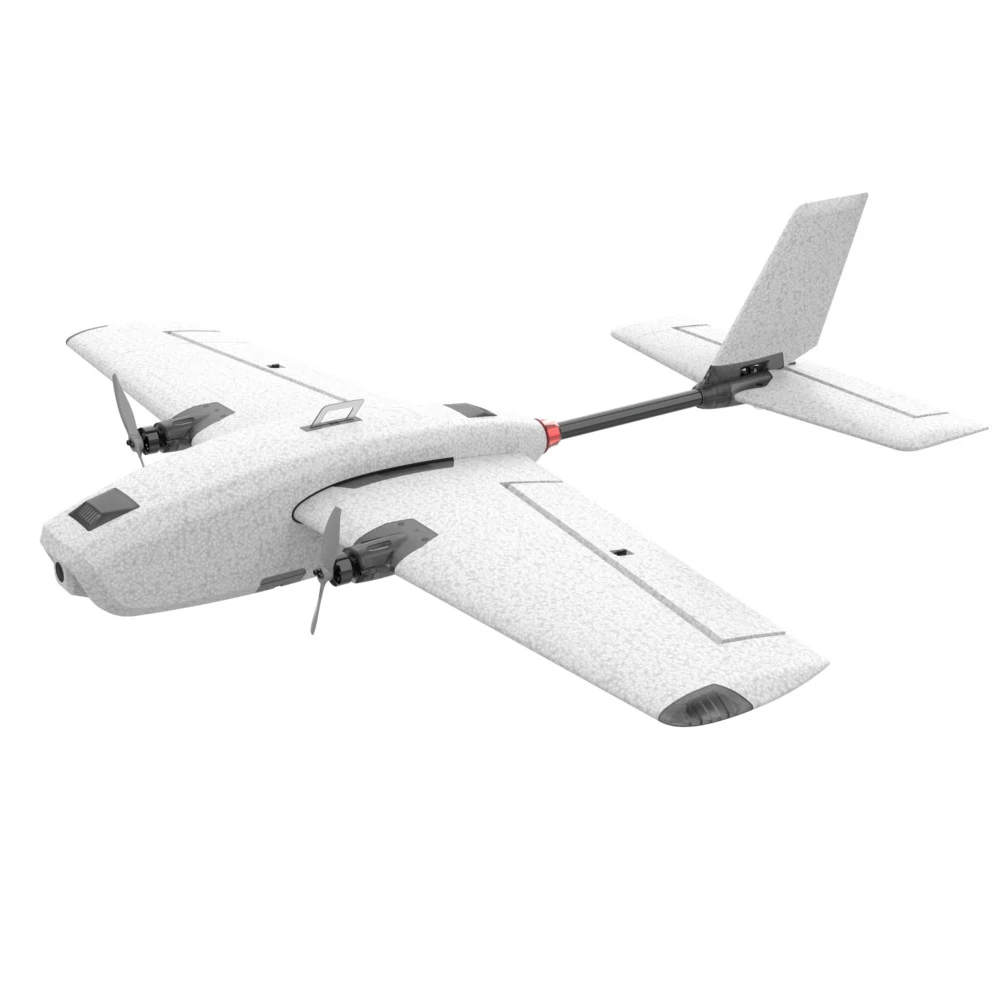

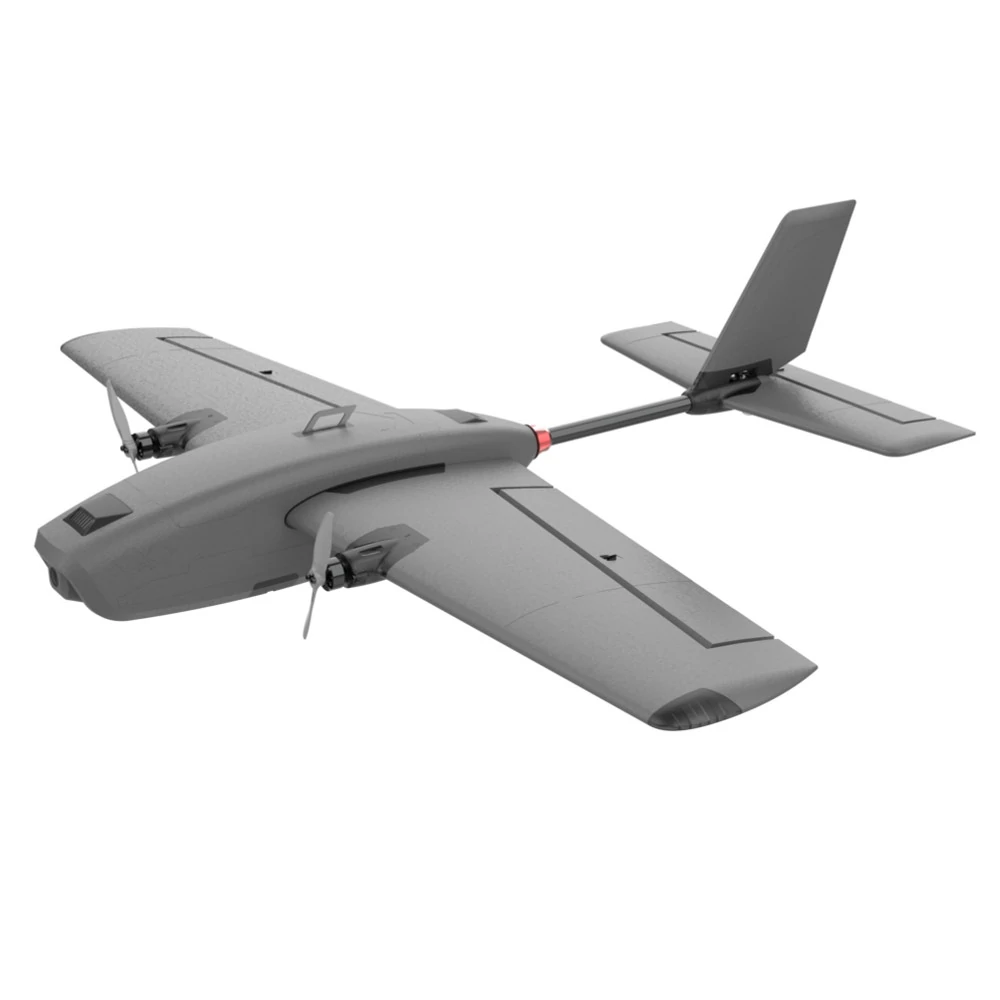

Color: Grey, White (optional)
Version: KIT, PNP (optional)
Material: EPP / ABS+PC / carbon fiber / aluminum
Wingspan 730mm
Length: 645mm
Height: 140mm
Empty Weight: 155g (white) / 205g (grey)
Takeoff Weight: 350g ~ 500g
Cabin Space: Length 245mm x Width 51mm x Height 48mm
Minimum Flying Speed: <20km/h
Maximum Flight Speed: >120km/h
Maximum Cruising Range: >25km
Maximum Cruise: >65Mins
Tensile Force: >600g (measured statically with the brushless version of 3S)
Packing Size: 400mm * 230mm * 155mm
Package Weight: 880g (PNP)

T-1 Ranger PNP Power System:
Motor: FX-1404-3700KV brushless
ESC: FX-20A brushless
Propeller: FX-3830
Servo: FX-5g

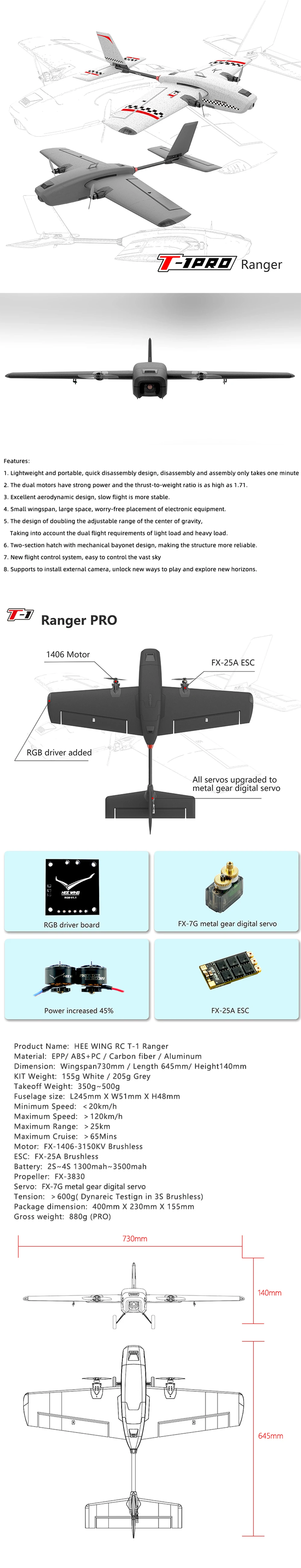

T-1 Ranger PRO PNP Power System:
Motor: FX-1406-3150KV
Brushless ESC: FX-25A
Propeller: FX-3830
Servo: FX-7G metal gear digital servo

Features:
1. Small, lightweight, and portable at 730mm wingspan.

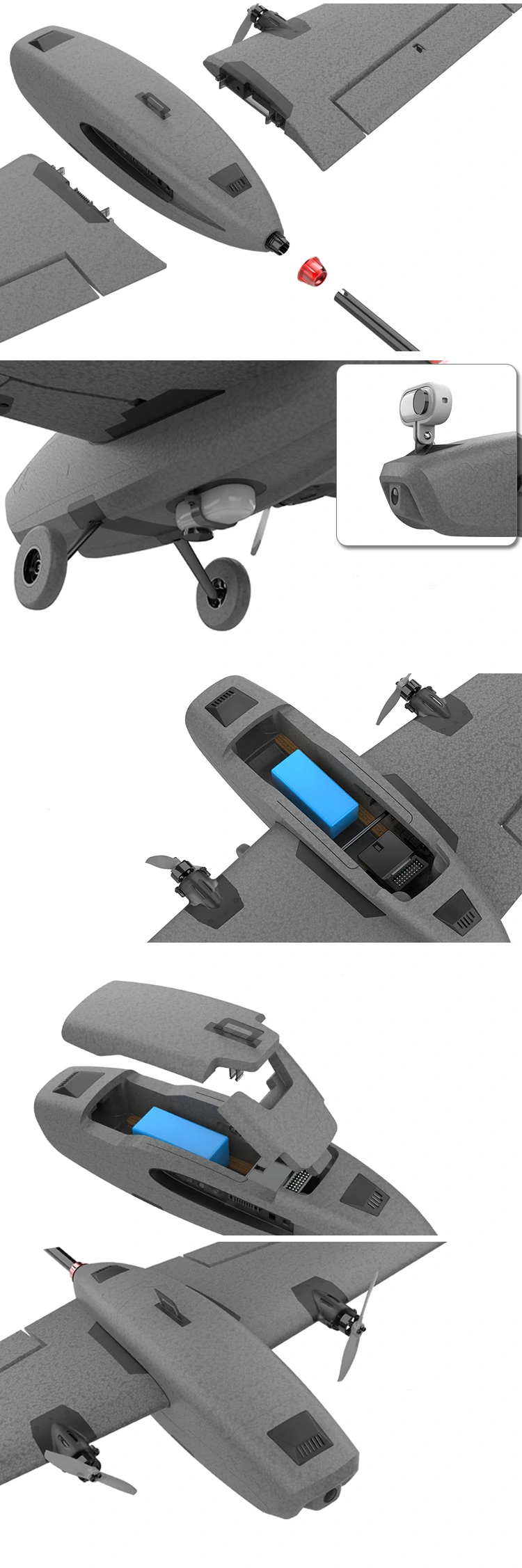

2. Quick disassembly design. Assemble and disassemble for transportation in a minute.
3. Powerful twin motor for thrust-to-weight ratio as high as 1.71 *PNP version only.
4. Superb aerodynamic design. Stable at low speed.
5. Large internal space to carry battery and electronics with high flexibility to achieve the best CG.
6. Front and rear hatch for maximum flexibility organizing your electronics.
7. Dedicated front FPV camera mount.
8. White foam is now the same high-density version as Gray foam.
9. Newly revised air intake for better cooling.
10. Easily detachable main wings reduce damage during a crash.

T-1 Ranger KIT Version Included:
1x HEE WING T-1 Ranger 730mm Wingspan Dual Motor EPP FPV RC Airplane KIT
1x Decals
Assembly Manual, Click Here
Requires you own/not included:
Radio – Minimum 4 channels.
Receiver – Minimum 4 channels.
Motor: 2pcs FX-1404-3700KV Brushless Motor *recommended
ESC: 2pcs FX-20A *recommended
Battery: 2-3S 1300mAh – 5000mAh or 450-500gram *recommended
Propeller: FX-3830 *recommended
Servo: 3pcs FX-5g *recommended
Charger: supports 2-3S LiPo charging

T-1 Ranger PNP Version Included:
1x T1 Ranger – PNP (color of your choice)
– Preinstalled 2x 1404 BL motor, 2x FX-20A ESC, 3x 5G Digital Servo, 5V 2A UBEC, 2x 3830 propellers, Quick Release Wiring Plug for the Main Wings.
Assembly Manual, Click Here
Requires your own/not included：
Radio – Minimum 4 channels.
Receiver – Minimum 4 channels.
Battery: 2-4S 1300mAh – 5000mAh or 450-500gram *recommended
Charger: supports 2-3S LiPo charging

T-1 Ranger PRO PNP Version Included:
1x HEE WING T-1 Ranger PRO Airplane
– Preinstalled 2x FX1406-3150KV BL motor, 2x FX-25A ESC, 3x 7g Digital Metal Gear Servo, RGB Lights Driver Board, 5V 2A UBEC, 2x 3830 propellers, Quick Release Wiring Plug for the Main Wings.
Requires your own/not included:
Radio – Minimum 4 channels.
Receiver – Minimum 4 channels.
Battery: 2-4S 1300mAh – 5000mAh or 450-500gram *recommended
Charger: supports 2-4S LiPo charging

Note
– T1 Ranger PNP comes with plastic wheel/landing gear.
– Each of your main wings, tail, and fuselage are individually boxed within the external shipping box for maximum protection during shipping.
